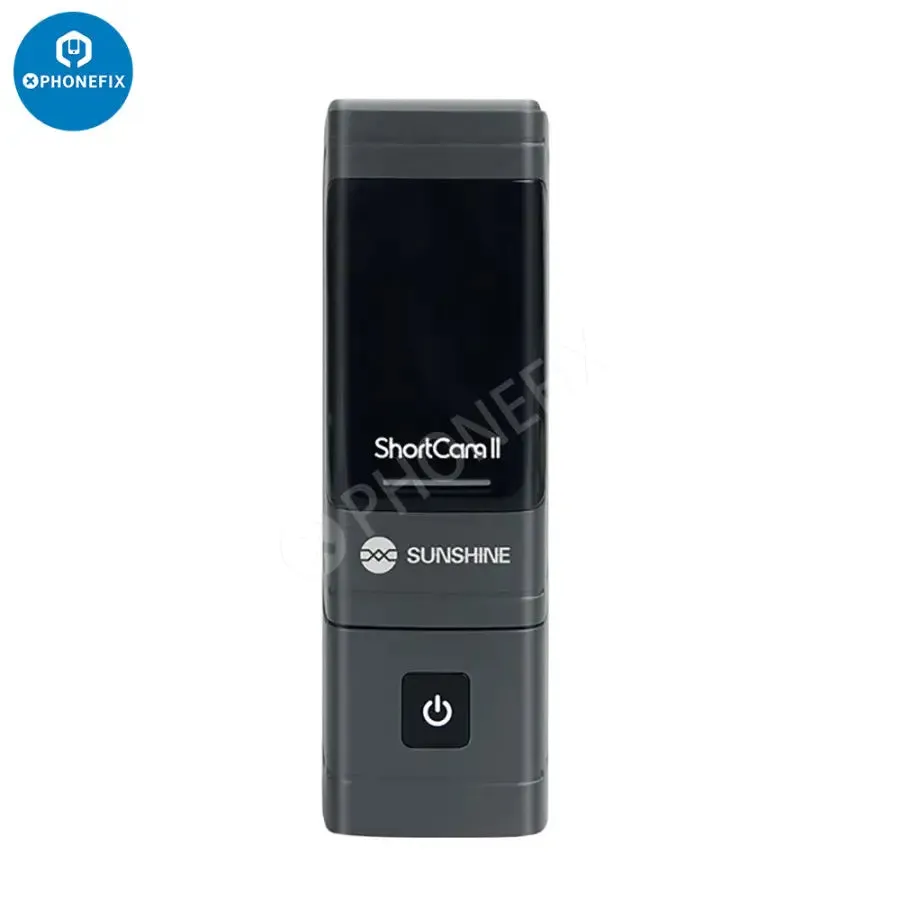

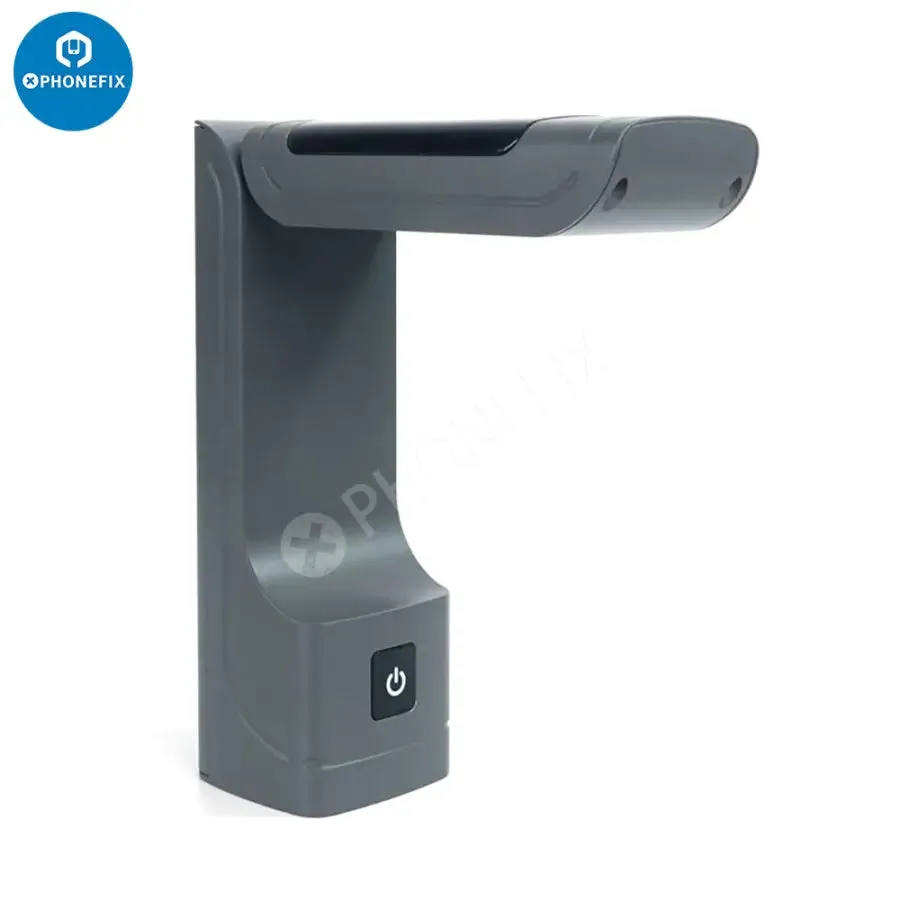

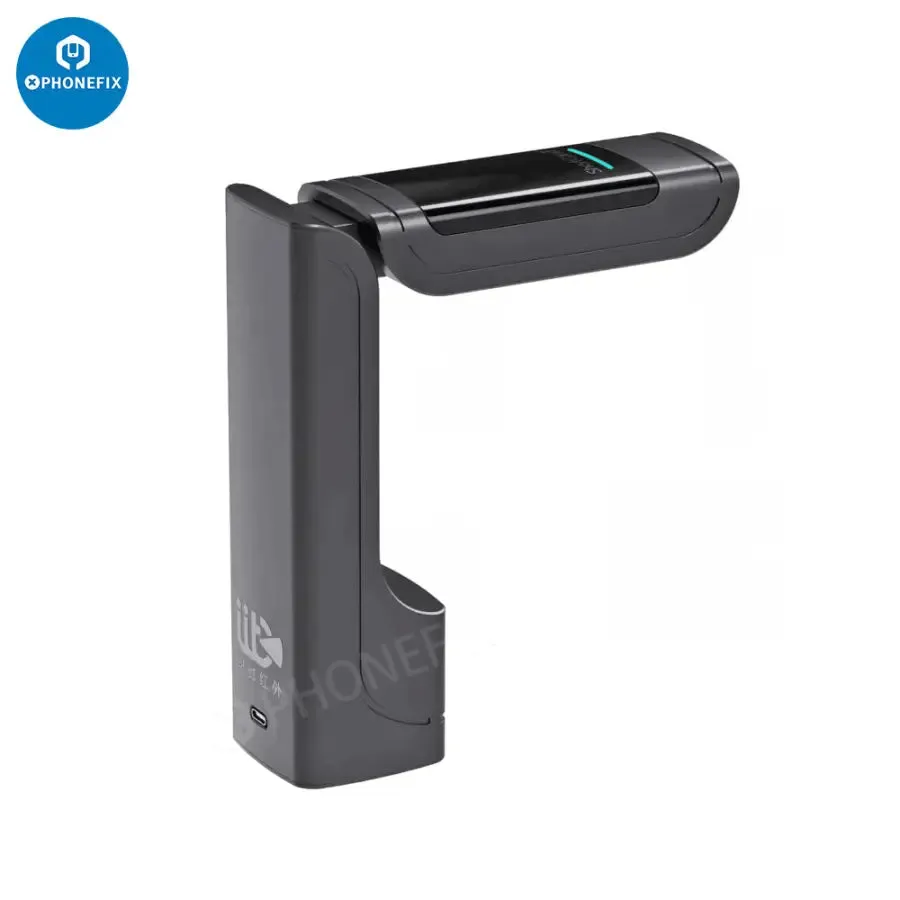

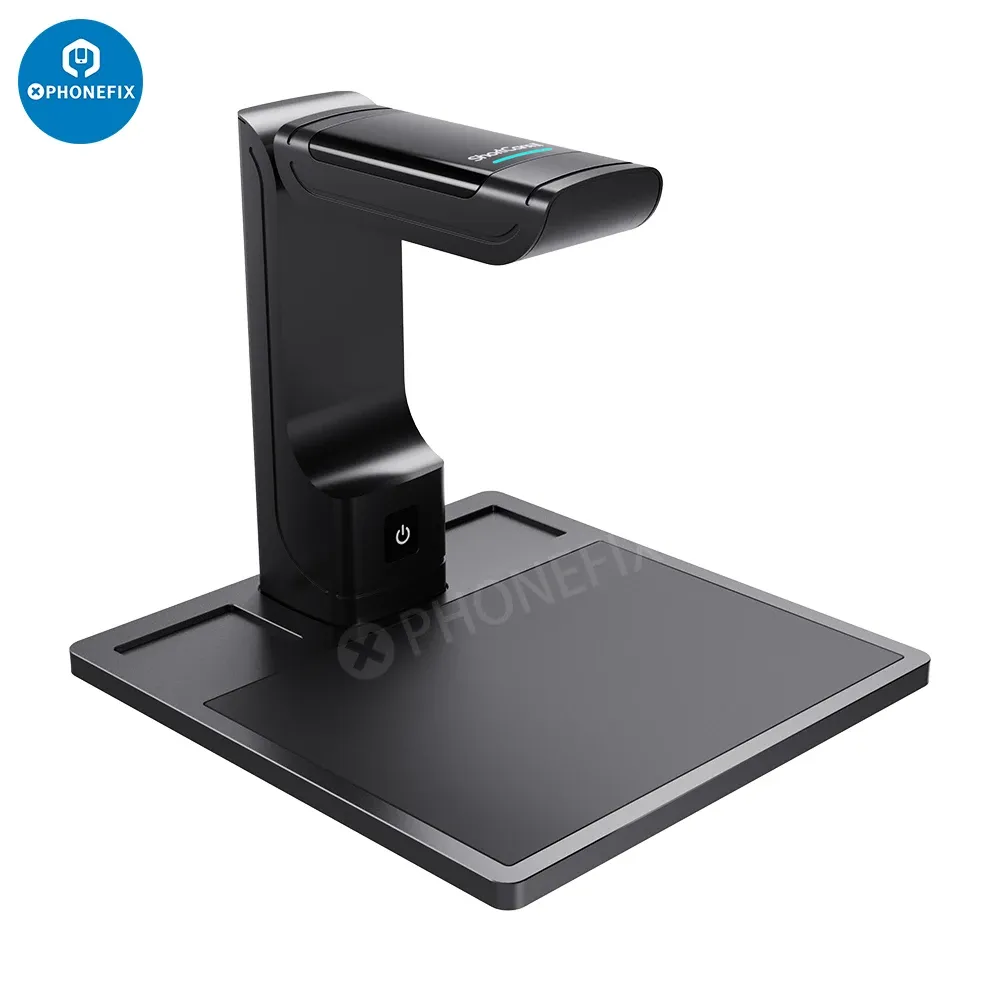

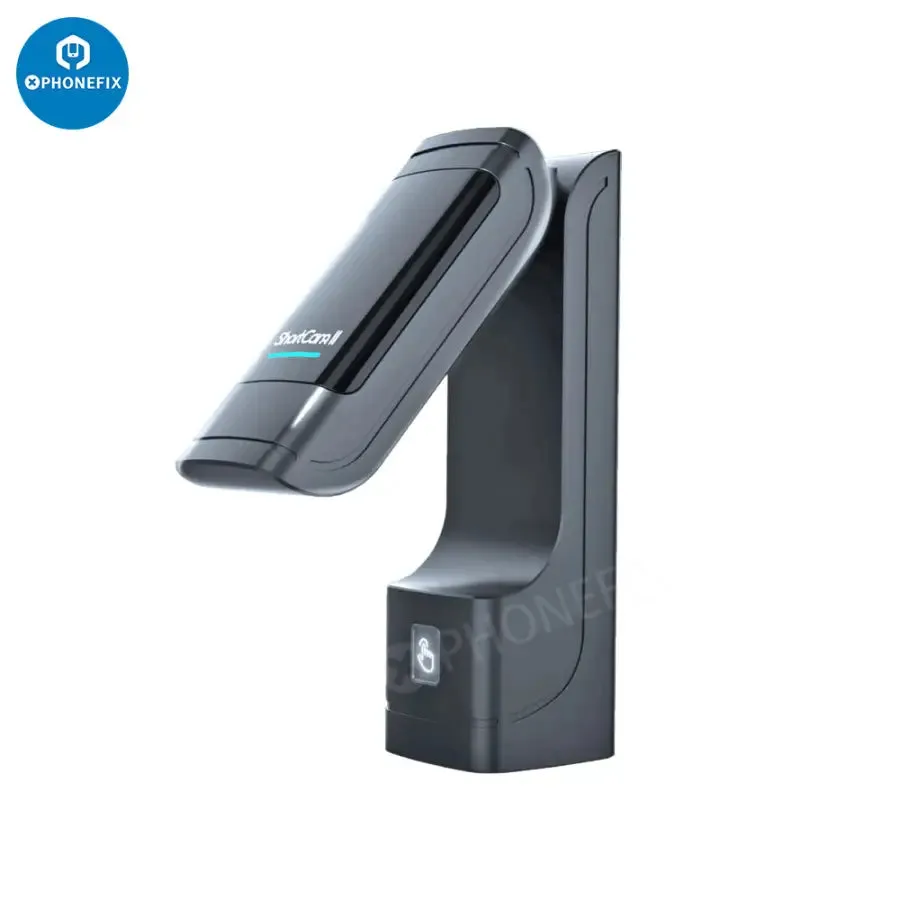

SUNSHINE ShortCam Thermal Imager motherboard rapid diagnosis instrument for Mobile Phone motherboard repair. Launch Linkseek ShortCam II Infrared Thermal Camera PCB Fault Diagnosis Tool For Mobile Phone Motherboard Repair. Linkseek shortcam II thermal imager for diagnosing motherboard IC faults such as short circuit, overheating, etc.

Sunshine ShortCam II thermal camera with High-definition Thermal Imaging Display, 400W Foldable Portable One-key Quick Check Machine for Accurate Fault Leakage Location.

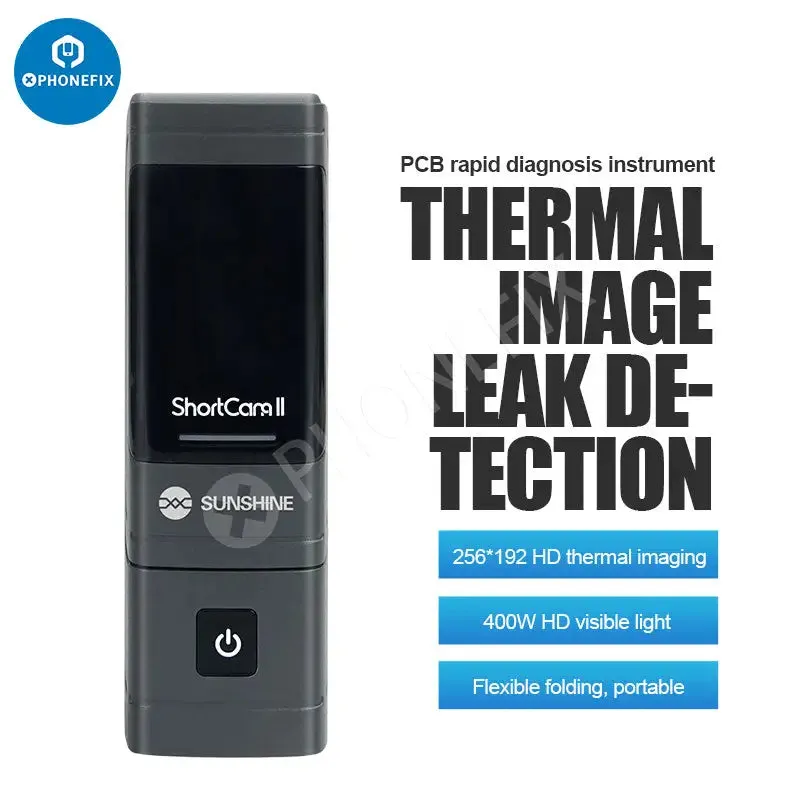

Features:
Thermal image leak detection

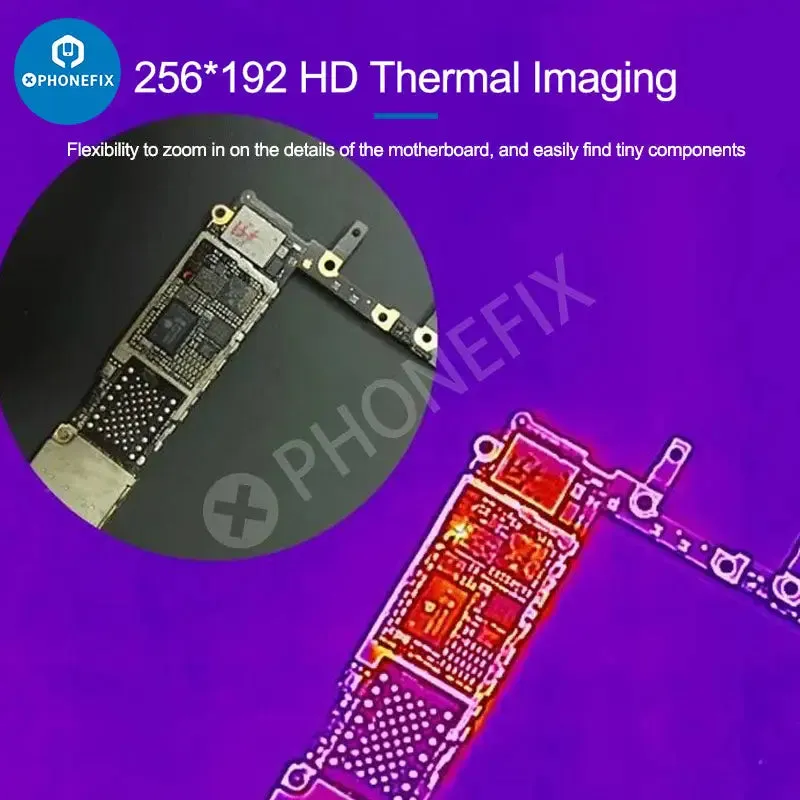

256*192 HD thermal imaging
400W HD visible light

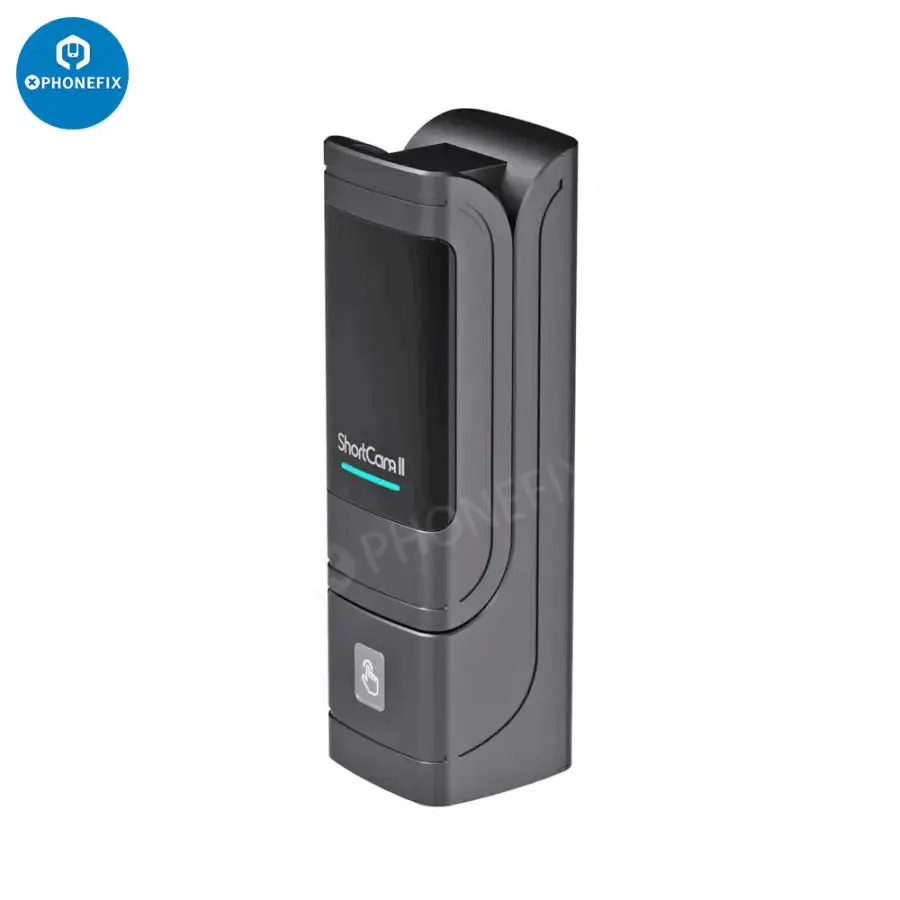

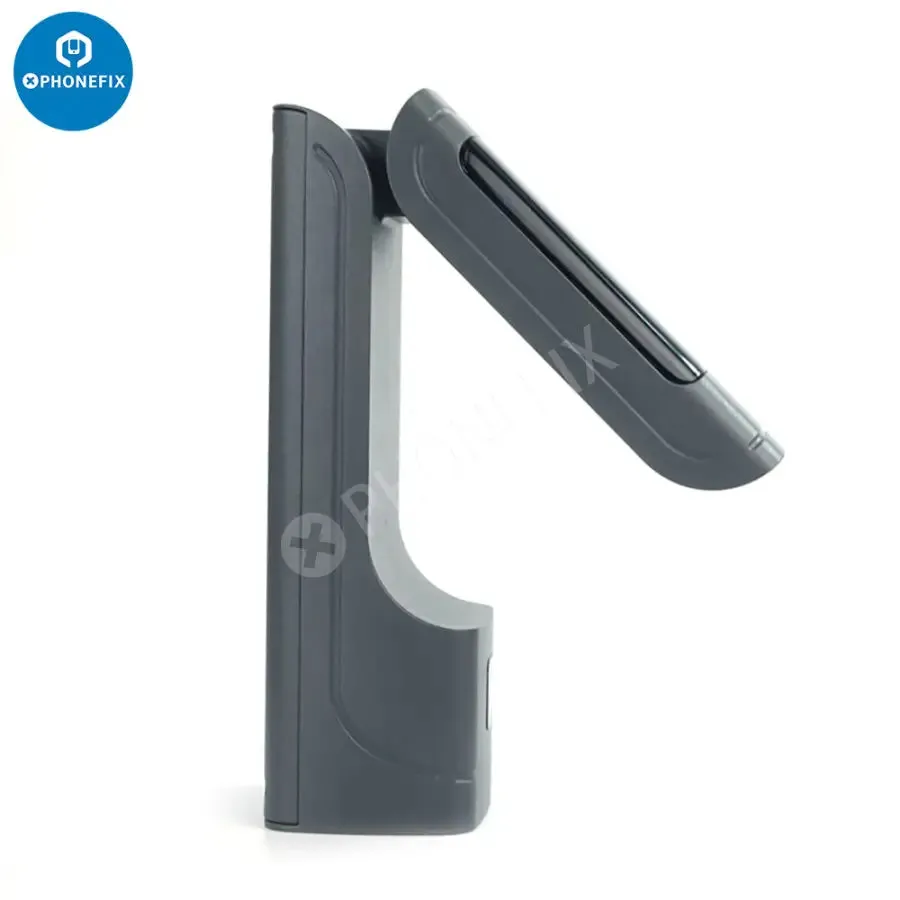

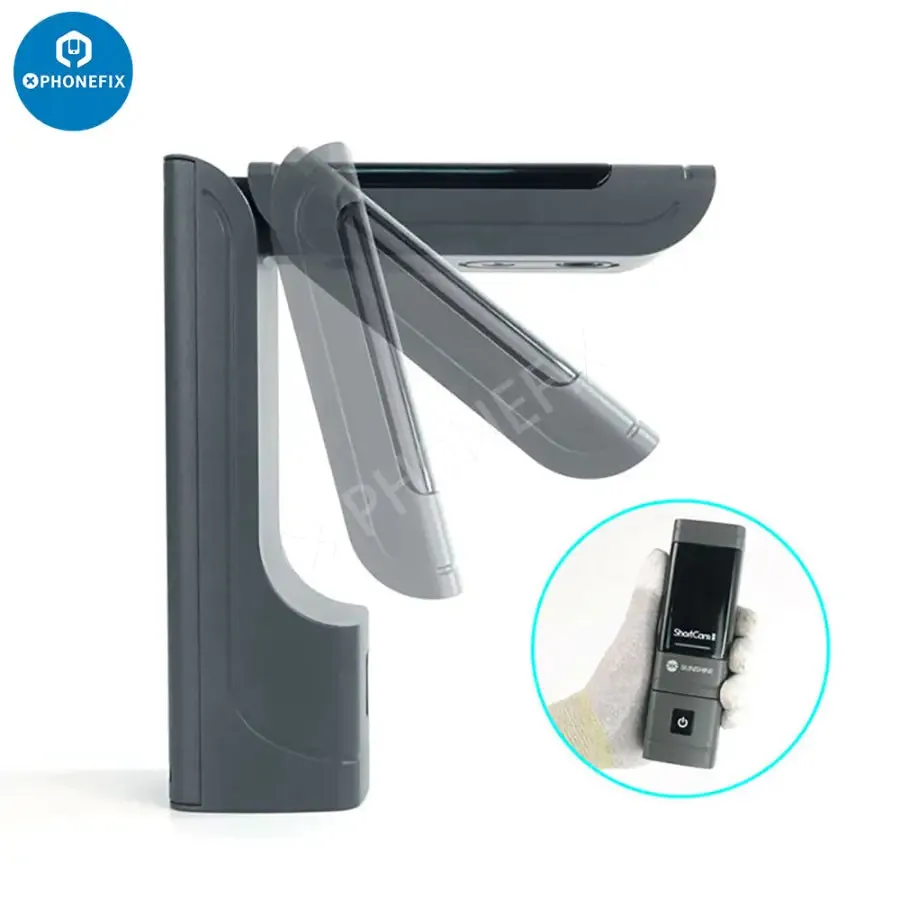

Flexible folding, portable
Support detection of all models/brands of mobile phone motherboards and other products with motherboards, etc.
One-click quick check for leakage
Accurate fault location
High-precision intelligent temperature measurement
High contrast display
High temperature real-time tracking

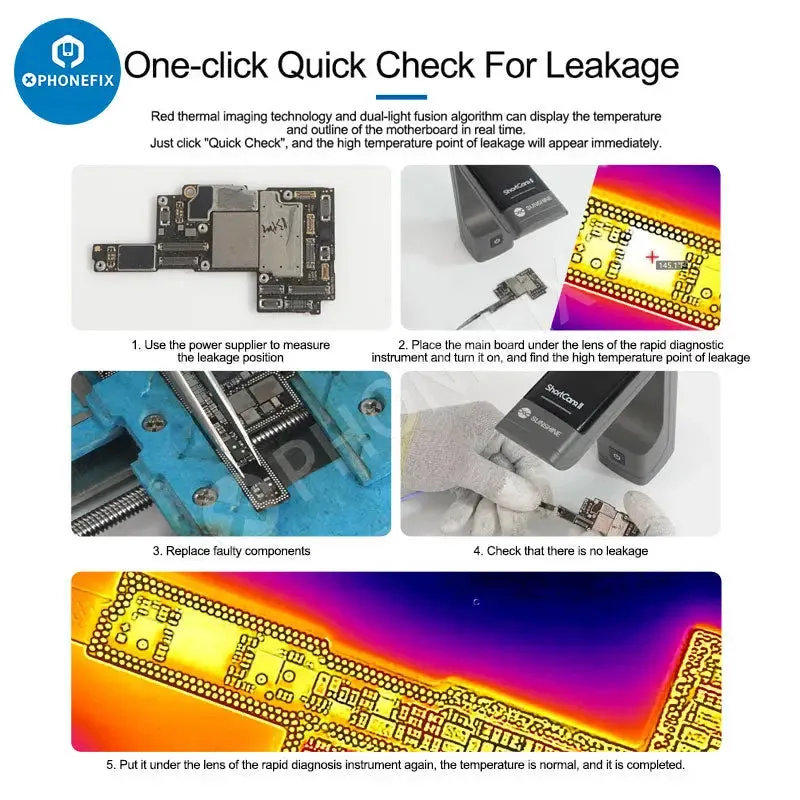

How to operate:
1. Use the power supplier to measure the leakage position

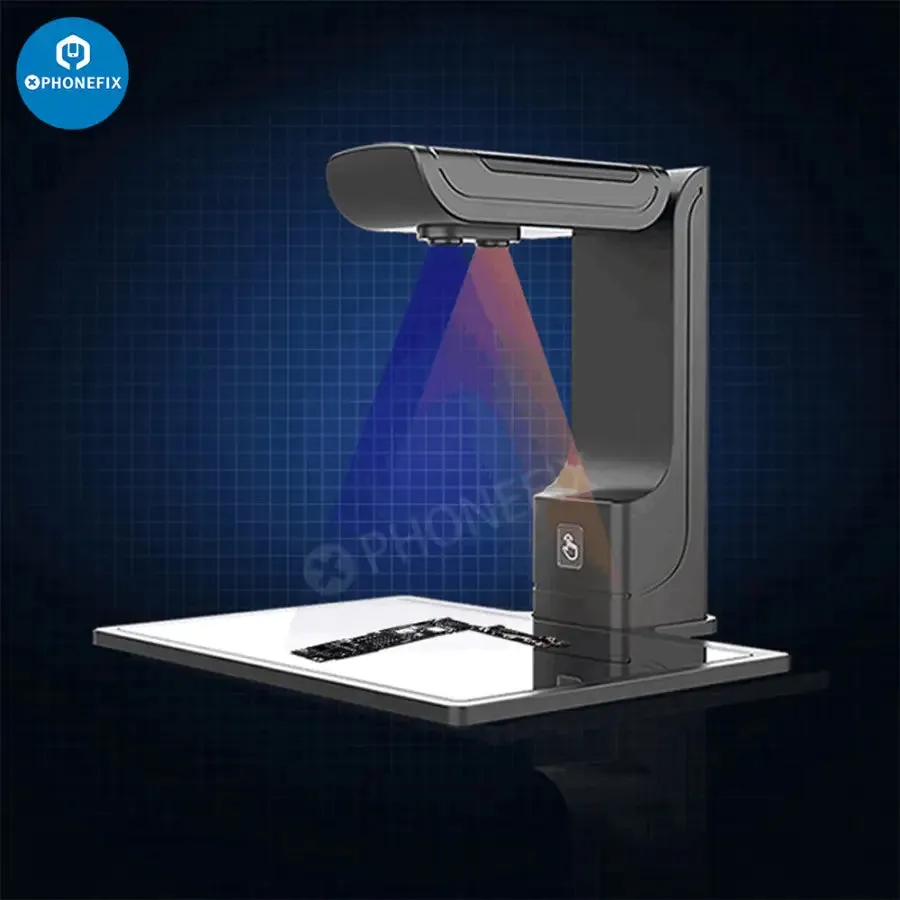

2. Place the main board under the lens of the rapid diagnostic instrument and turn it on, and find the high temperature point of leakage
3. Replace faulty components
4. Check that there is no leakage
5. Put it under the lens of the rapid diagnosis instrument again, the temperature is normal, and it is completed.

Description:

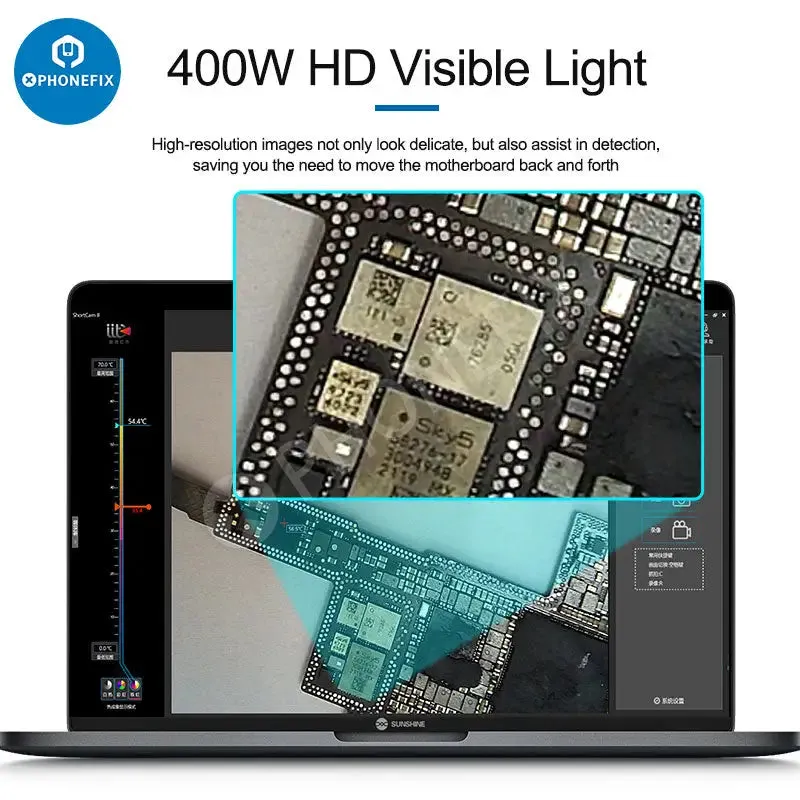

1. High-resolution images not only look delicate, but also assist in detection, saving you the need to move the motherboard back and forth.

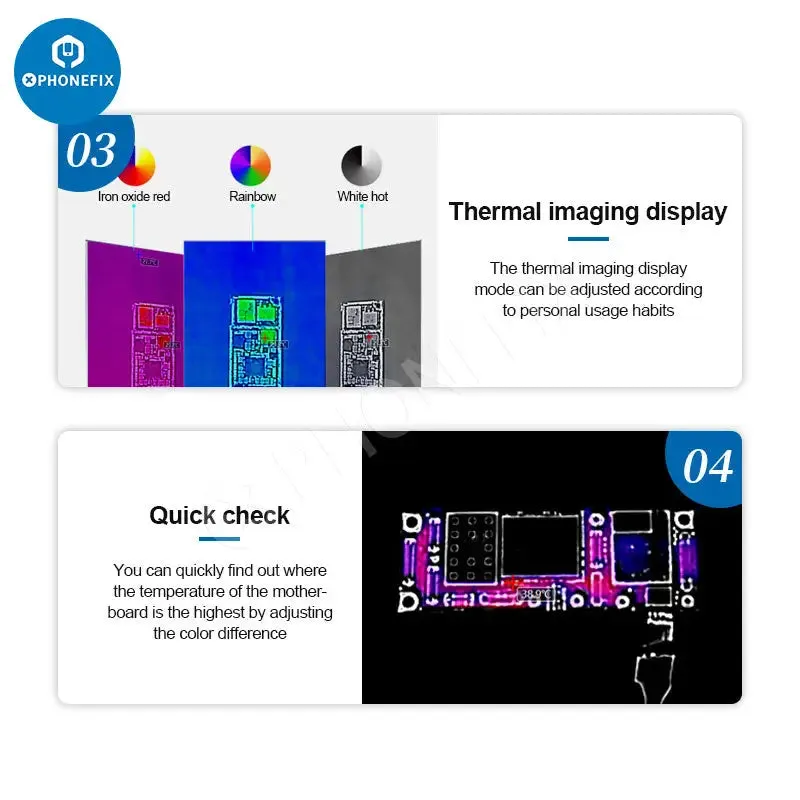

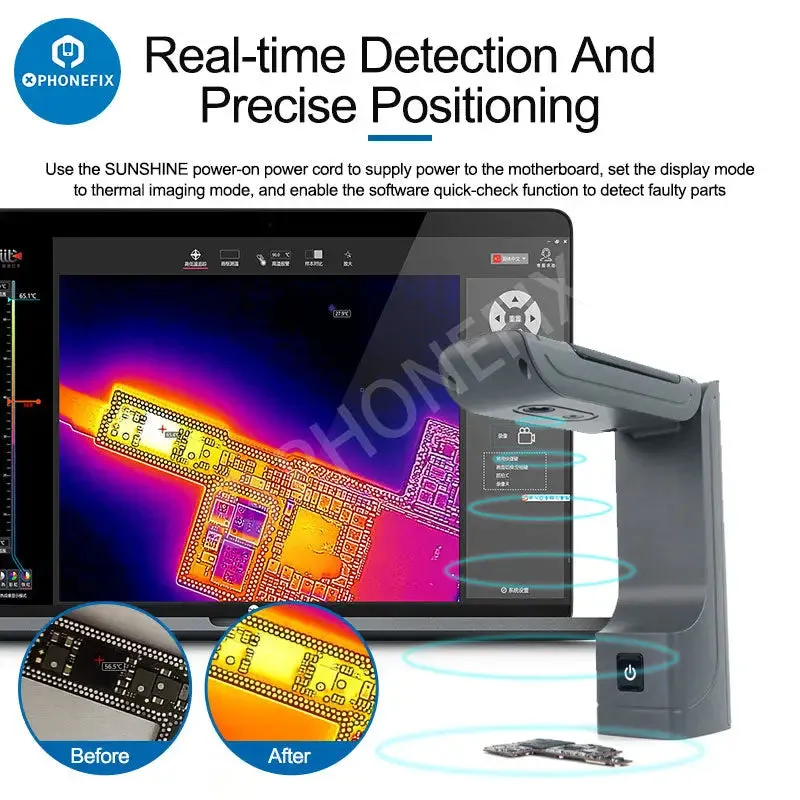

2. Red thermal imaging technology and dual-light fusion algorithm can display the temperature and outline of the motherboard in real time. Just click "Quick Check", and the high temperature point of leakage will appear immediately.

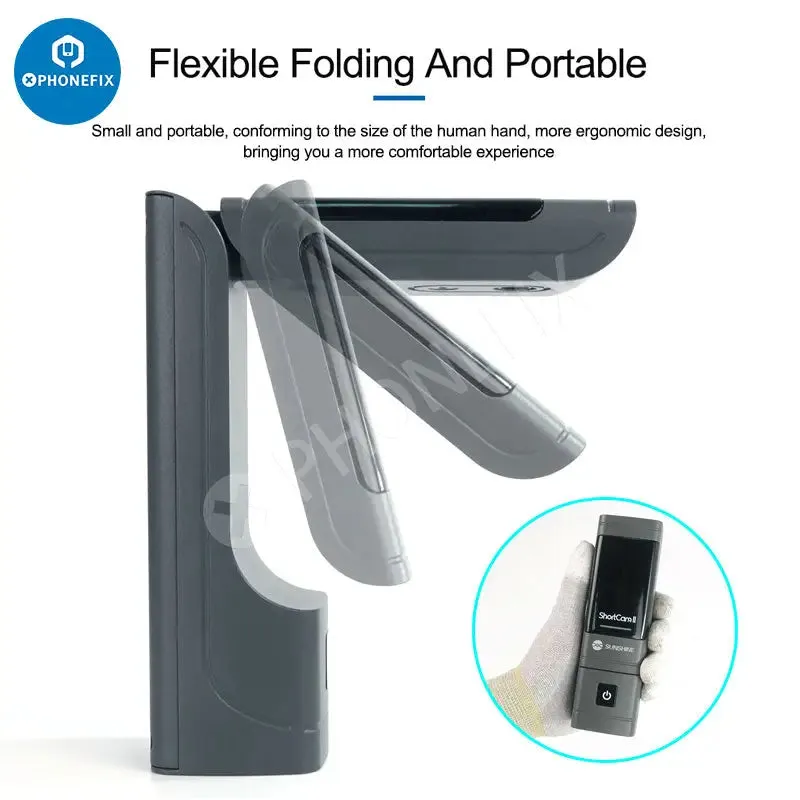

3. Small and portable, conforming to the size of the human hand, more ergonomic design, bringing you a more comfortable experience.

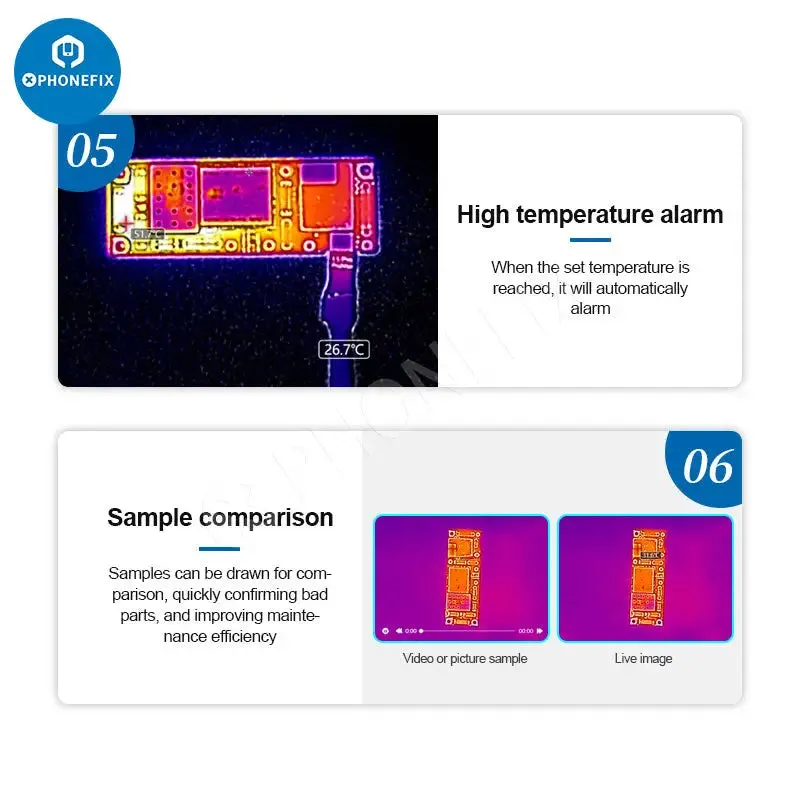

4. High temperature alarm. When the set temperature is reached, it will automatically alarm.

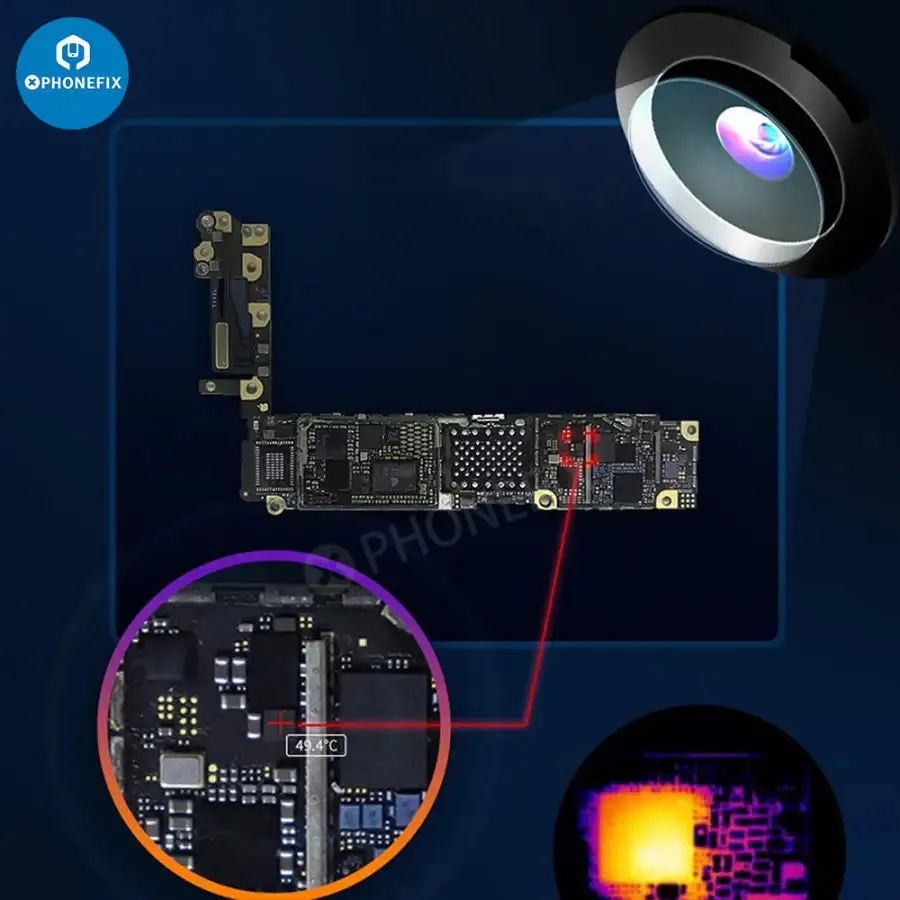

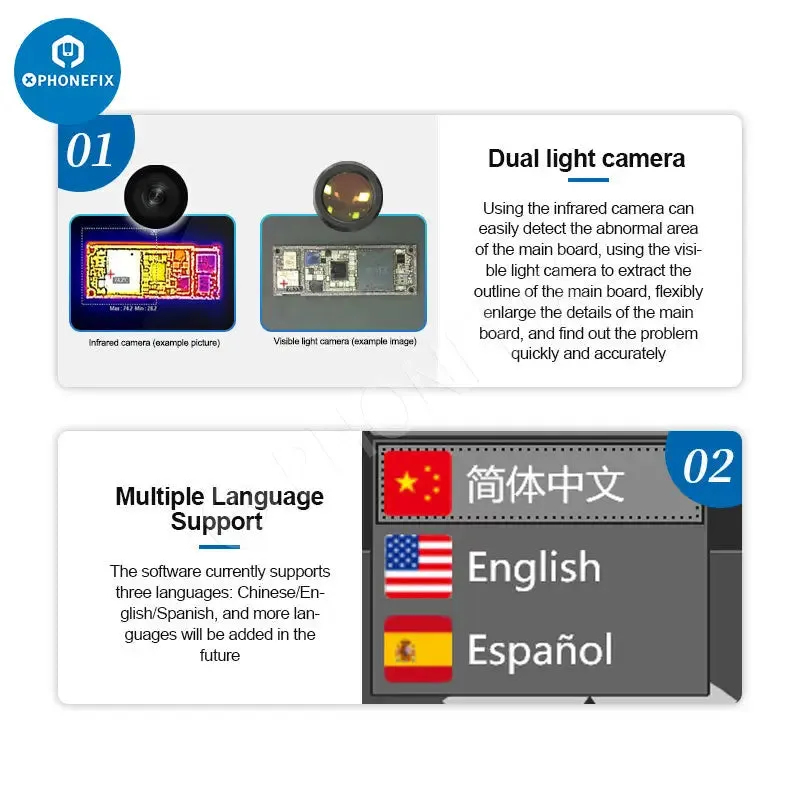

5. Dual light camera. Using the infrared camera can easily detect the abnormal area of the main board, using the visible light camera to extract the outline of the main board, flexibly enlarge the details of the main board, and find out the problem quickly and accurately.

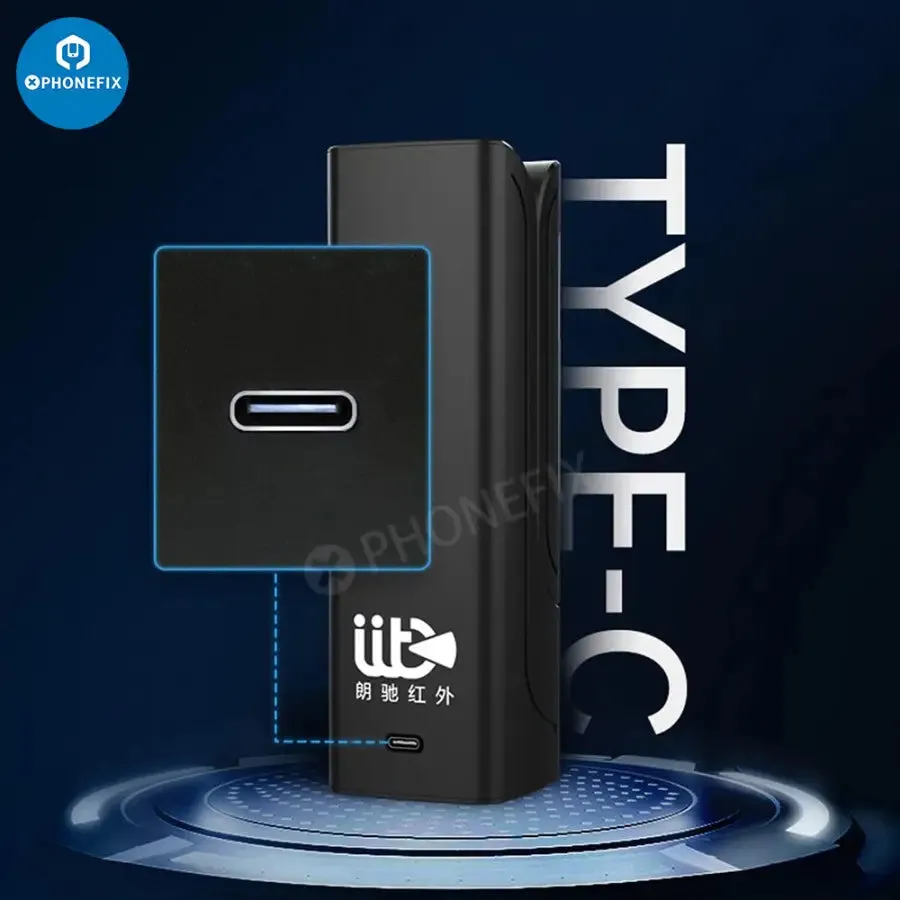

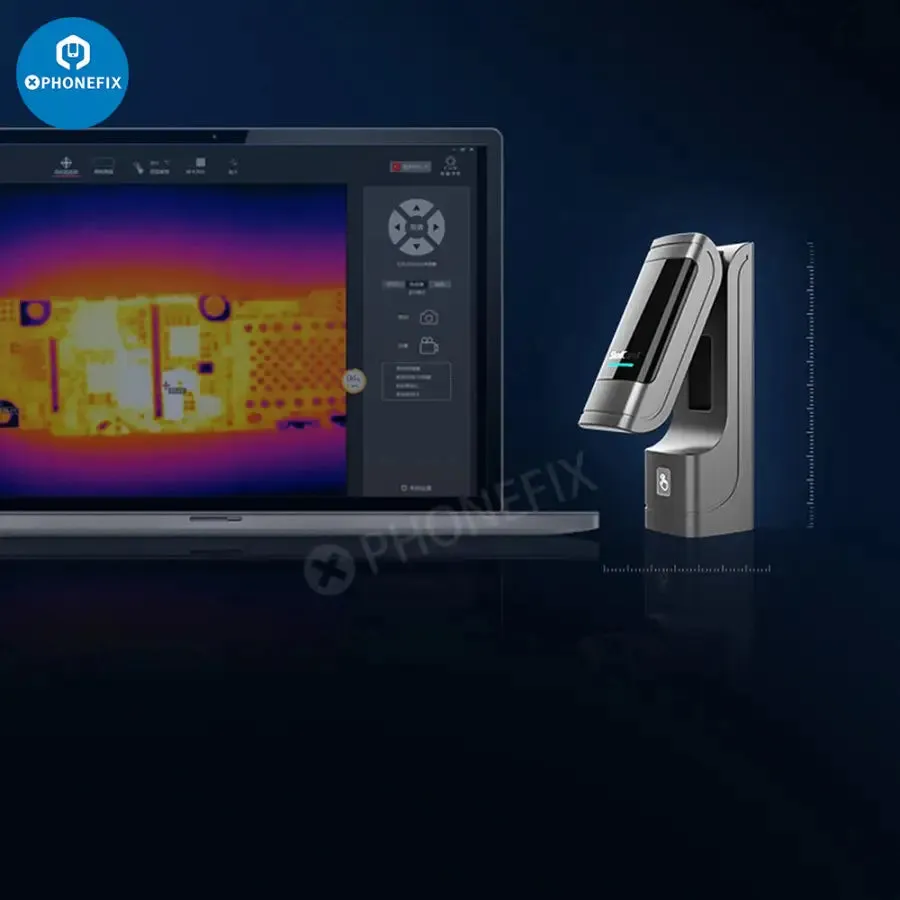

6. Type-C interface can be connected to a computer. Can be connected to a computer, find tiny components at a glance.
7. Sample comparison. Samples can be drawn for comparison, quickly confirming bad parts, and improving maintenance efficiency.
8.Multiple Language Support. The software currently supports three languages: Chinese/English/Spanish, and more languages will be added in the future.

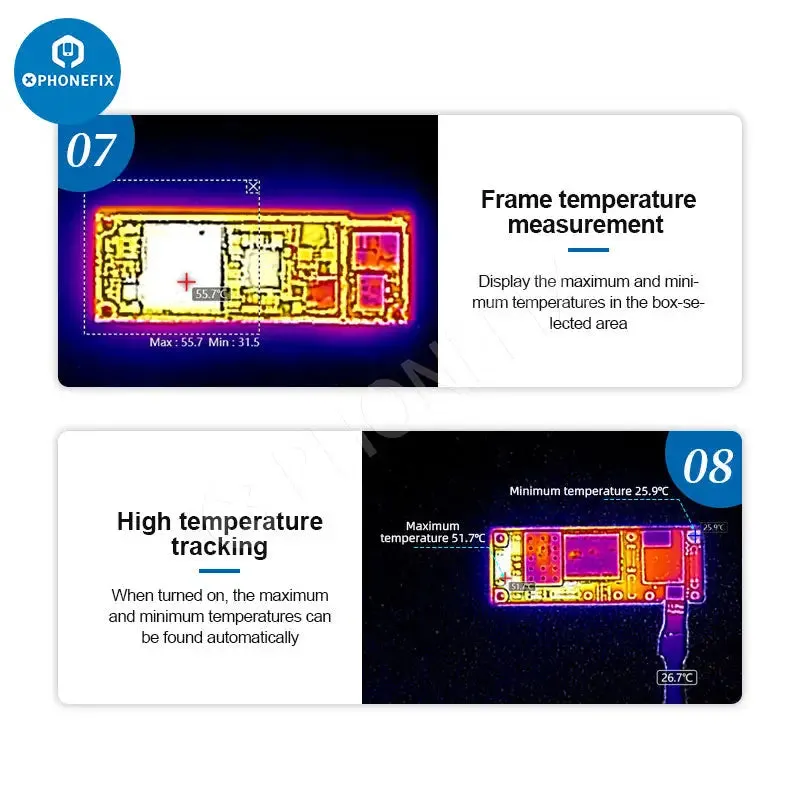

9.High temperature tracking. When turned on, the maximum and minimum temperatures can be found automatically.

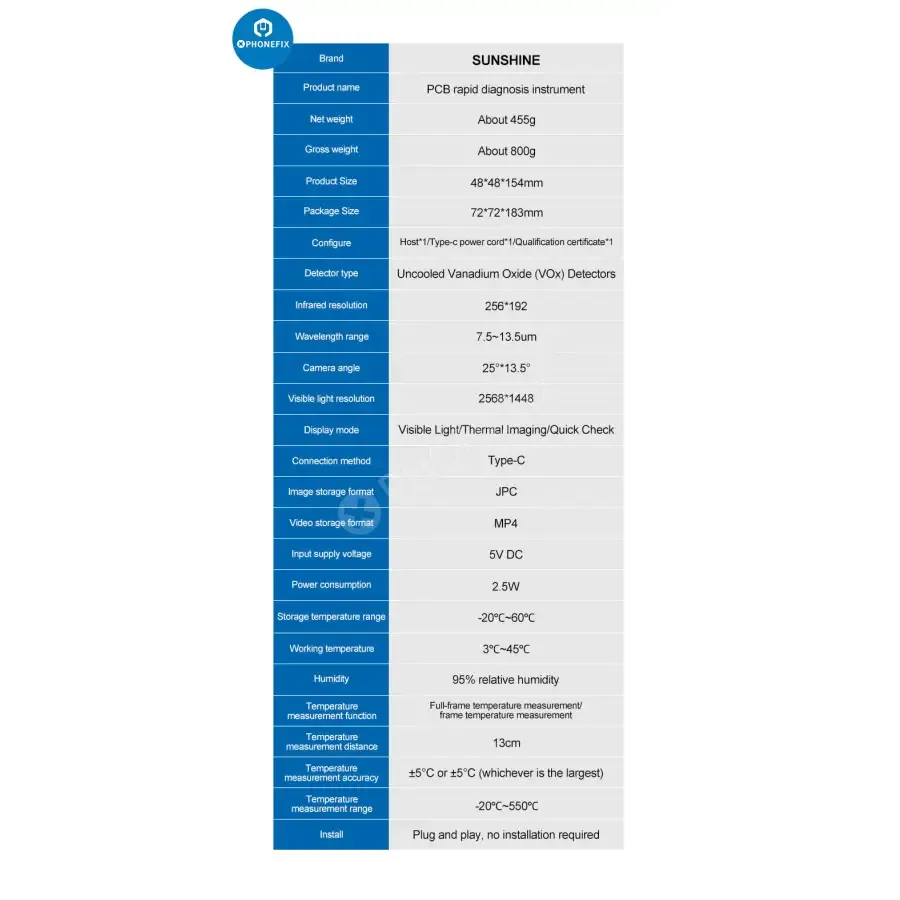

Specification:
Detector type: Uncooled Vanadium Oxide(VOx) Detectors
Infrared resolution: 256*192
Wave length range: 7.5~13.5um
Camera angle: 250*13.5°
Visible light resolution: 2568*1448
Display mode: Visible Light/Thermal imaging/Quick Check
Connection method: Type-C
Image storage format: JPG
Input supply voltage: 5V DC
Power consumption: 2.5W
Storage temperature range: -20℃~60℃
Working temperature: 3℃~45℃
Humidity: 95% relative humidity
Temperature measurement function: Full-frame temperature measurement/frame temperature measurement
Temperature measurement distance: 13cm
Temperature measurement accuracy: ±5℃ or ±5℃(whichever is the largest)
Temperature measurement range: -20C~550℃
Install: Plug and play, no installation required.

Package Included:
1 x Host
1 x Type-C power cord
12 x Quantification certificate
